Reference : HT4215
Price on request

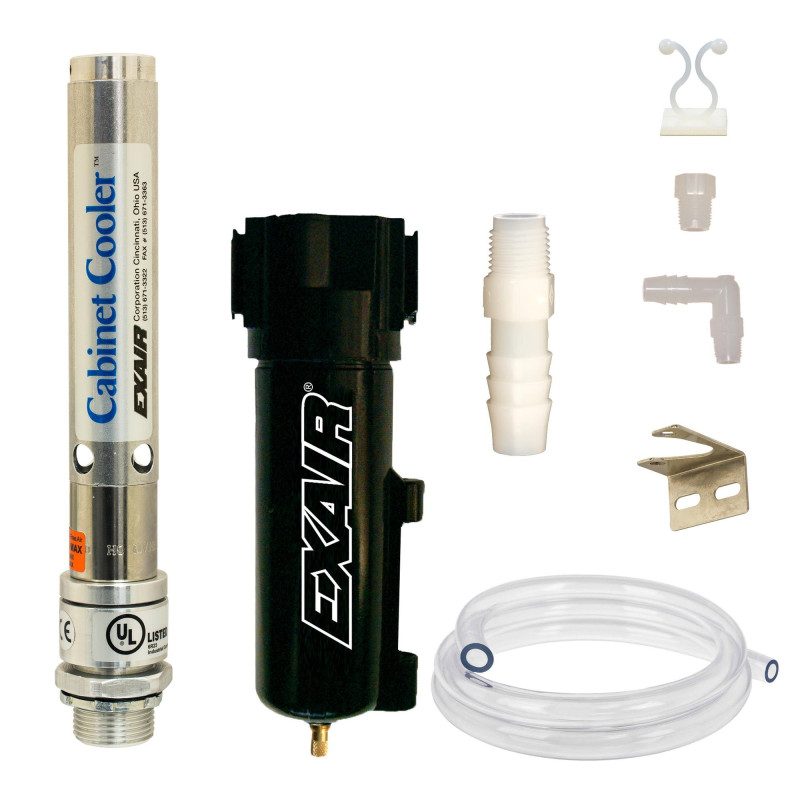

NEMA 12 Continuous Operation Cabinet Cooler
High Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F
(52 to 93 ) are available in many cooling capacities for large and small
control panels. All Cabinet Coolers are UL Listed and CE compliant. Continuous
operation Cabinet Cooler® Systems are recommended when constant cooling and
constant positive purge are desirable. Each of these systems will include a
water-dirt filter separator to prevent water condensate and dirt from entering
your enclosure and cold air distribution kit used to direct the air for
circulation or on to hot spots. They are a low cost, reliable way to cool and
purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex
tube to produce cold air from compressed air - with no moving parts. The
compact Cabinet Cooler can be installed in minutes through a standard
electrical knockout.
(52 to 93 ) are available in many cooling capacities for large and small
control panels. All Cabinet Coolers are UL Listed and CE compliant. Continuous
operation Cabinet Cooler® Systems are recommended when constant cooling and
constant positive purge are desirable. Each of these systems will include a
water-dirt filter separator to prevent water condensate and dirt from entering
your enclosure and cold air distribution kit used to direct the air for
circulation or on to hot spots. They are a low cost, reliable way to cool and
purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex
tube to produce cold air from compressed air - with no moving parts. The
compact Cabinet Cooler can be installed in minutes through a standard
electrical knockout.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Withstand ambient temperatures up to 200°F
* Low cost
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 12 integrity (IP54)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Provide protection from dirt and dust
Performances +
NEMA 12 (IP54) High Temperature Cabinet Cooler, Continuous Operation -
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4215 | 1,000 | 293 | 73*
HT4225 | 1,700 | 498 | 74*
HT4230 | 2,000 | 586 | 74*
HT4240 | 2,800 | 821 | 78*
HT4250 | 3,400 | 997 | 75*
HT4260 | 4,000 | 1,171 | 77*
HT4270 | 4,800 | 1,406 | 77*
HT4280 | 5,600 | 1,641 | 79*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4215 | 1,000 | 293 | 73*
HT4225 | 1,700 | 498 | 74*
HT4230 | 2,000 | 586 | 74*
HT4240 | 2,800 | 821 | 78*
HT4250 | 3,400 | 997 | 75*
HT4260 | 4,000 | 1,171 | 77*
HT4270 | 4,800 | 1,406 | 77*
HT4280 | 5,600 | 1,641 | 79*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Tube Vortex en acier inoxydable - Composants extérieurs en aluminium
- Certification
- Non certifiés
- Environnement
- NEMA 12 (IP54)
- Fonctionnement
- Continu
- Température extérieure d'utilisation
- Haute température (supérieur à 50 )
- Options
- Electrovannes
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
