new
Reference : HT4015
Price on request

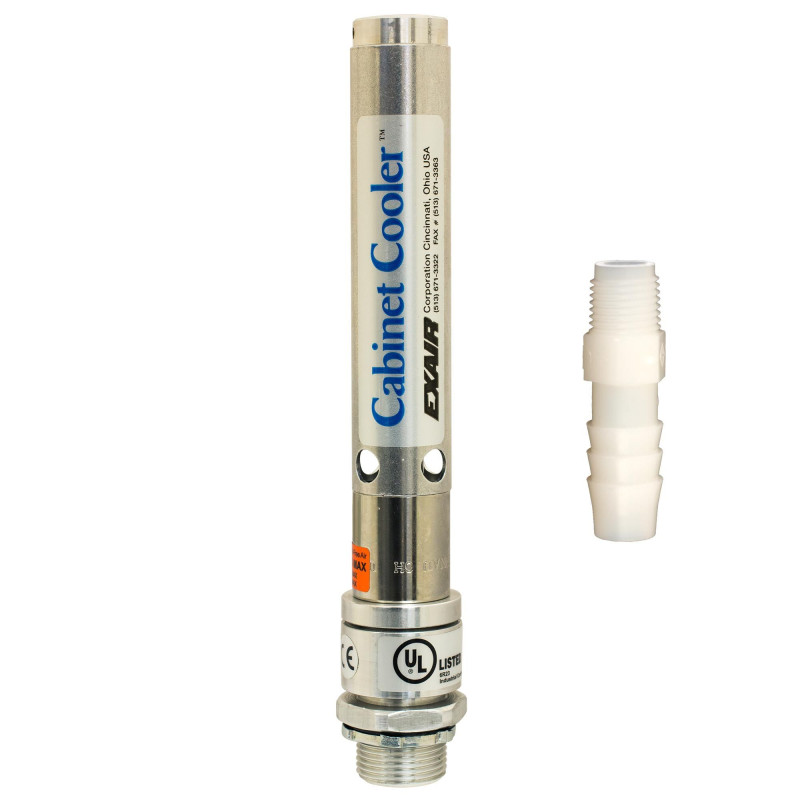

NEMA 12 Cabinet Cooler Only
NEMA 12 (IP54) Cabinet Coolers (dust-tight, oil-tight) are ideal for general
industrial environments where no liquids or corrosives are present. High
Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F (52
to 93 ) are available in many cooling capacities for large and small control
panels. All Cabinet Coolers are UL Listed and CE compliant. A NEMA 12 Cabinet
Cooler® System is available with a thermostat control or in a continuous
operation system. Each of these systems will include a water-dirt filter
separator to prevent water condensate and dirt from entering your enclosure
and cold air distribution kit used to direct the air for circulation or on to
hot spots. They are a low cost, reliable way to cool and purge electronic
control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce
cold air from compressed air - with no moving parts. The compact Cabinet
Cooler can be installed in minutes through a standard electrical knockout.
industrial environments where no liquids or corrosives are present. High
Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F (52
to 93 ) are available in many cooling capacities for large and small control
panels. All Cabinet Coolers are UL Listed and CE compliant. A NEMA 12 Cabinet
Cooler® System is available with a thermostat control or in a continuous
operation system. Each of these systems will include a water-dirt filter
separator to prevent water condensate and dirt from entering your enclosure
and cold air distribution kit used to direct the air for circulation or on to
hot spots. They are a low cost, reliable way to cool and purge electronic
control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce
cold air from compressed air - with no moving parts. The compact Cabinet
Cooler can be installed in minutes through a standard electrical knockout.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Withstand ambient temperatures up to 200°F
* Low cost
* Compact
* Cooling capacities up to 2,800 Btu/hr. (821 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 12 integrity (IP54)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Provide protection from dirt and dust
Performances +
NEMA 12 (IP54) Performance
Model # | Capacity (Btu/hr) | Capacity (Watts) | Sound Level (dBA)
HT4015 | 1,000 | 293 | 73*
HT4025 | 1,700 | 498 | 74*
HT4030 | 2,000 | 586 | 74*
HT4040 | 2,800 | 821 | 78*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Model # | Capacity (Btu/hr) | Capacity (Watts) | Sound Level (dBA)
HT4015 | 1,000 | 293 | 73*
HT4025 | 1,700 | 498 | 74*
HT4030 | 2,000 | 586 | 74*
HT4040 | 2,800 | 821 | 78*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Tube Vortex en acier inoxydable - Composants extérieurs en aluminium
- Certification
- Non certifiés
- Environnement
- NEMA 12 (IP54)
- Fonctionnement
- Continu
- Température extérieure d'utilisation
- Haute température (supérieur à 50 )
- Options
- Produit vendu seul
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
