Reference : 4204J
Price on request

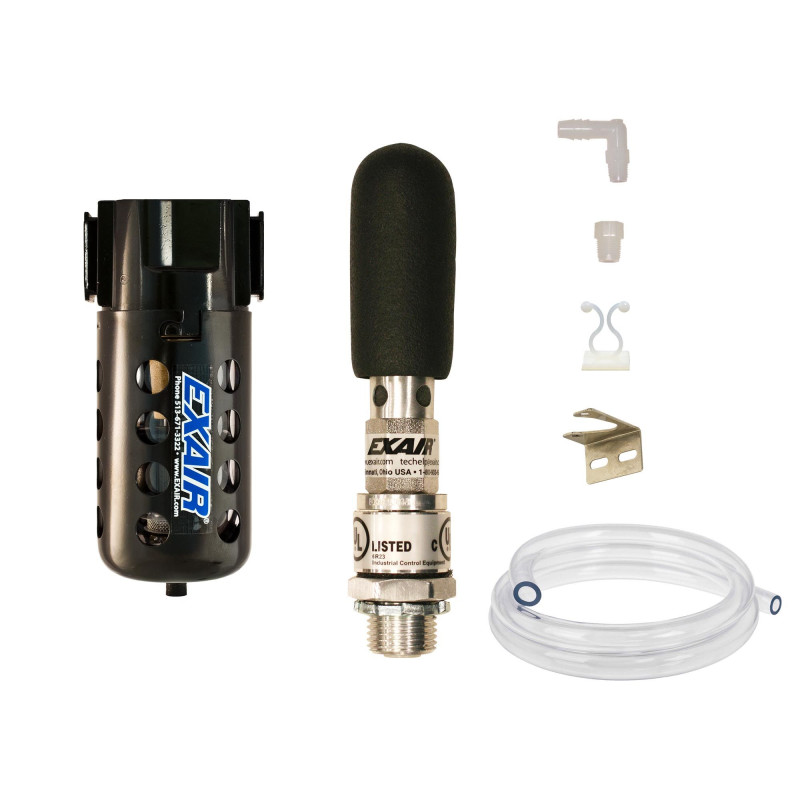

NEMA 12 Continuous Operation Cabinet Cooler
Dirt, dust and oil resistant NEMA 12 (IP54) continuous operation Cabinet
Cooler® Systems are recommended when constant cooling and constant positive
purge of electronic control panels are desireable. Systems for continuous
operation include a Cabinet Cooler, cold air distribution kit and filter.
Unlike an expensive, freon-based air conditioner, EXAIR Cabinet Coolers
incorporate a vortex tube to produce cold air from compressed air - with no
moving parts. The compact Cabinet Cooler can be installed in minutes through a
standard electrical knockout and maintains the NEMA rating of the electronic
enclosure. All Cabinet Coolers are UL Listed and CE Compliant.
Cooler® Systems are recommended when constant cooling and constant positive
purge of electronic control panels are desireable. Systems for continuous
operation include a Cabinet Cooler, cold air distribution kit and filter.
Unlike an expensive, freon-based air conditioner, EXAIR Cabinet Coolers
incorporate a vortex tube to produce cold air from compressed air - with no
moving parts. The compact Cabinet Cooler can be installed in minutes through a
standard electrical knockout and maintains the NEMA rating of the electronic
enclosure. All Cabinet Coolers are UL Listed and CE Compliant.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 12 integrity (IP54)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Provide protection from dirt and dust
Performances +
NEMA 12 (IP54) Cabinet Cooler, Continuous Operation - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4204 | 275 | 80 | 59*
4208 | 550 | 162 | 67*
4215 | 1,000 | 293 | 73*
4225 | 1,700 | 498 | 74*
4230 | 2,000 | 586 | 74*
4240 | 2,800 | 821 | 78*
4250 | 3,400 | 997 | 75*
4260 | 4,000 | 1,171 | 77*
4270 | 4,800 | 1,406 | 77*
4280 | 5,600 | 1,641 | 79*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4204 | 275 | 80 | 59*
4208 | 550 | 162 | 67*
4215 | 1,000 | 293 | 73*
4225 | 1,700 | 498 | 74*
4230 | 2,000 | 586 | 74*
4240 | 2,800 | 821 | 78*
4250 | 3,400 | 997 | 75*
4260 | 4,000 | 1,171 | 77*
4270 | 4,800 | 1,406 | 77*
4280 | 5,600 | 1,641 | 79*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Tube Vortex en acier inoxydable - Composants extérieurs en aluminium
- Certification
- Non certifiés
- Environnement
- NEMA 12 (IP54)
- Fonctionnement
- Continu
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Electrovanne
- Solenoid Valve (standard) or ETC (upgrade)
- Non inclus
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
