Refroidisseurs d’armoires NEMA 4X (IP66) inox 316 NHP
Reference : NHP4804SS-316-240
Price on request

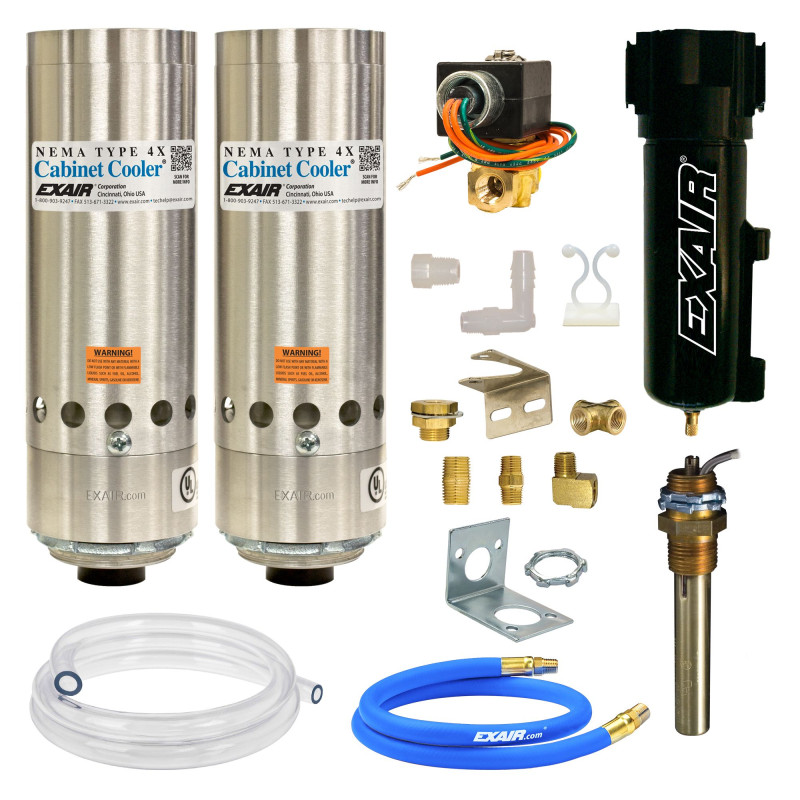

NEMA 4X Thermostat Control Cabinet Cooler
A dirt and dust resistant NEMA 4X Non Hazardous Purge Cabinet Cooler® System
provides a slight positive pressure in the enclosure to keep contaminants from
entering small holes or conduits. NEMA 4X thermostat control systems are the
most efficient way to operate a Cabinet Cooler. They save air by activating
the cooler only when internal temperatures approach critical levels.
Thermostat controlled cooler systems are the best option when experiencing
fluctuating heat loads caused by environment or seasonal changes. The standard
thermostat control systems include an adjustable thermostat factory set at
95°F (35 ). They are a low cost, reliable way to cool and purge electronic
control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce
cold air from compressed air - with no moving parts. The compact Cabinet
Cooler can be installed in minutes through a standard electrical knockout.
NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant,
corrosion resistant, indoor/outdoor service) are ideal for general industrial
environments where no liquids or corrosives are present. All Cabinet Coolers
are UL Listed and CE compliant.
provides a slight positive pressure in the enclosure to keep contaminants from
entering small holes or conduits. NEMA 4X thermostat control systems are the
most efficient way to operate a Cabinet Cooler. They save air by activating
the cooler only when internal temperatures approach critical levels.
Thermostat controlled cooler systems are the best option when experiencing
fluctuating heat loads caused by environment or seasonal changes. The standard
thermostat control systems include an adjustable thermostat factory set at
95°F (35 ). They are a low cost, reliable way to cool and purge electronic
control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce
cold air from compressed air - with no moving parts. The compact Cabinet
Cooler can be installed in minutes through a standard electrical knockout.
NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant,
corrosion resistant, indoor/outdoor service) are ideal for general industrial
environments where no liquids or corrosives are present. All Cabinet Coolers
are UL Listed and CE compliant.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Corrosion resistant in harsh environments
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4X integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4X (IP66) Non Hazardous Purge Type 303 Stainless Steel with
Thermostat Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4804SS, NHP4804SS-240 | 275 | 80 | 59*
NHP4808SS, NHP4808SS-240 | 550 | 162 | 67*
NHP4815SS, NHP4815SS-240 | 1,000 | 283 | 73
NHP4825SS, NHP4825SS-240 | 1,700 | 498 | 80
NHP4830SS, NHP4830SS-240 | 2,000 | 586 | 80
NHP4840SS, NHP4840SS-240 | 2,800 | 821 | 82
NHP4850SS, NHP4850SS-240 | 3,400 | 997 | 84
NHP4860SS, NHP4860SS-240 | 4,000 | 1,171 | 84
NHP4870SS, NHP4870SS-240 | 4,800 | 1,406 | 84
NHP4880SS, NHP4880SS-240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
NEMA 4X (IP66) Non Hazardous Purge Type 316 Stainless Steel with
Thermostat Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4804SS-316, NHP4804SS-316-240 | 275 | 80 | 59*
NHP4808SS-316, NHP4808SS-316-240 | 550 | 162 | 67*
NHP4815SS-316, NHP4815SS-316-240 | 1,000 | 283 | 73
NHP4825SS-316, NHP4825SS-316-240 | 1,700 | 498 | 80
NHP4830SS-316, NHP4830SS-316-240 | 2,000 | 586 | 80
NHP4840SS-316, NHP4840SS-316-240 | 2,800 | 821 | 82
NHP4850SS-316, NHP4850SS-316-240 | 3,400 | 997 | 84
NHP4860SS-316, NHP4860SS-316-240 | 4,000 | 1,171 | 84
NHP4870SS-316, NHP4870SS-316-240 | 4,800 | 1,406 | 84
NHP4880SS-316, NHP4880SS-316-240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Thermostat Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4804SS, NHP4804SS-240 | 275 | 80 | 59*
NHP4808SS, NHP4808SS-240 | 550 | 162 | 67*
NHP4815SS, NHP4815SS-240 | 1,000 | 283 | 73
NHP4825SS, NHP4825SS-240 | 1,700 | 498 | 80
NHP4830SS, NHP4830SS-240 | 2,000 | 586 | 80
NHP4840SS, NHP4840SS-240 | 2,800 | 821 | 82
NHP4850SS, NHP4850SS-240 | 3,400 | 997 | 84
NHP4860SS, NHP4860SS-240 | 4,000 | 1,171 | 84
NHP4870SS, NHP4870SS-240 | 4,800 | 1,406 | 84
NHP4880SS, NHP4880SS-240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
NEMA 4X (IP66) Non Hazardous Purge Type 316 Stainless Steel with
Thermostat Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4804SS-316, NHP4804SS-316-240 | 275 | 80 | 59*
NHP4808SS-316, NHP4808SS-316-240 | 550 | 162 | 67*
NHP4815SS-316, NHP4815SS-316-240 | 1,000 | 283 | 73
NHP4825SS-316, NHP4825SS-316-240 | 1,700 | 498 | 80
NHP4830SS-316, NHP4830SS-316-240 | 2,000 | 586 | 80
NHP4840SS-316, NHP4840SS-316-240 | 2,800 | 821 | 82
NHP4850SS-316, NHP4850SS-316-240 | 3,400 | 997 | 84
NHP4860SS-316, NHP4860SS-316-240 | 4,000 | 1,171 | 84
NHP4870SS-316, NHP4870SS-316-240 | 4,800 | 1,406 | 84
NHP4880SS-316, NHP4880SS-316-240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Inox 316
- Certification
- Non certifié
- Environnement
- NEMA 4X (IP66)
- Fonctionnement
- Régulation thermique
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Kit
- Tension
- 240V
- Voltage
- 240V
- Régulation Thermique
- Électrovanne
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
