Reference : NHP4604SS-316

Price on request

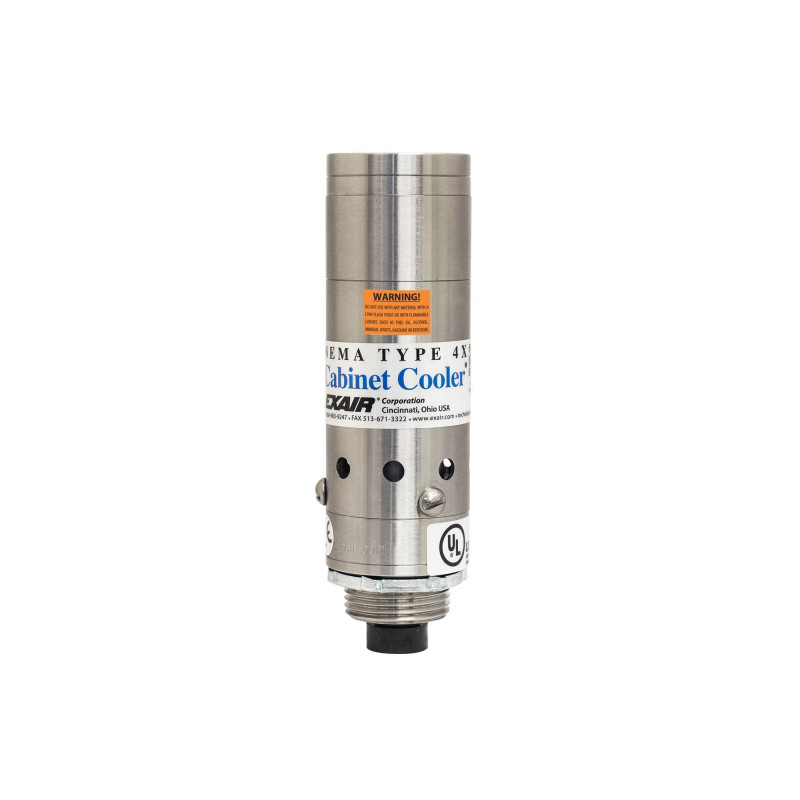

NEMA 4X Cabinet Cooler Only
A dirt and dust resistant NEMA 4X Non Hazardous Purge NHP) Cabinet Cooler®
System provides a slight positive pressure in the enclosure to keep
contaminants from entering small holes or conduits. They are available with a
thermostat control. Each of these systems will include a water-dirt filter
separator to prevent water condensate and dirt from entering your enclosure
and cold air distribution kit used to direct the air for circulation or on to
hot spots. NEMA 4X (IP66) Cabinet Coolers are available in many cooling
capacities for large and small control panels. All Cabinet Coolers are UL
Listed and CE compliant. NHP Cabinet Coolers are a low cost, reliable way to
cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a
vortex tube to produce cold air from compressed air - with no moving parts.
The compact Cabinet Cooler can be installed in minutes through a standard
electrical knockout. NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight,
splash resistant, corrosion resistant, indoor/outdoor service) are ideal for
general industrial environments where no liquids or corrosives are present.
Puissance frigorofique (à 6,9 bar)

Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +

* Low cost
* Corrosion resistant in harsh environments
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4X integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4X (IP66) Type 303/316 Stainless Steel Non Hazardous Purge Cabinet
Cooler - Performance

Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4604SS, NHP4604SS-316 | 275 | 80 | 59*
NHP4608SS, NHP4608SS-316 | 550 | 162 | 67*
NHP4615SS, NHP4615SS-316 | 1,000 | 293 | 73
NHP4625SS, NHP4625SS-316 | 1,700 | 498 | 80
NHP4630SS, NHP4630SS-316 | 2,000 | 586 | 80
NHP4640SS, NHP4640SS-316 | 2,800 | 821 | 82
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Matériaux
Inox 316
Certification
Non certifié
Environnement
NEMA 4X (IP66)
Fonctionnement
NHP
Température extérieure d'utilisation
inférieur à 50
Options
Electrovanne
How it works +


Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
