Reference : ATEX4615SS
Price on request

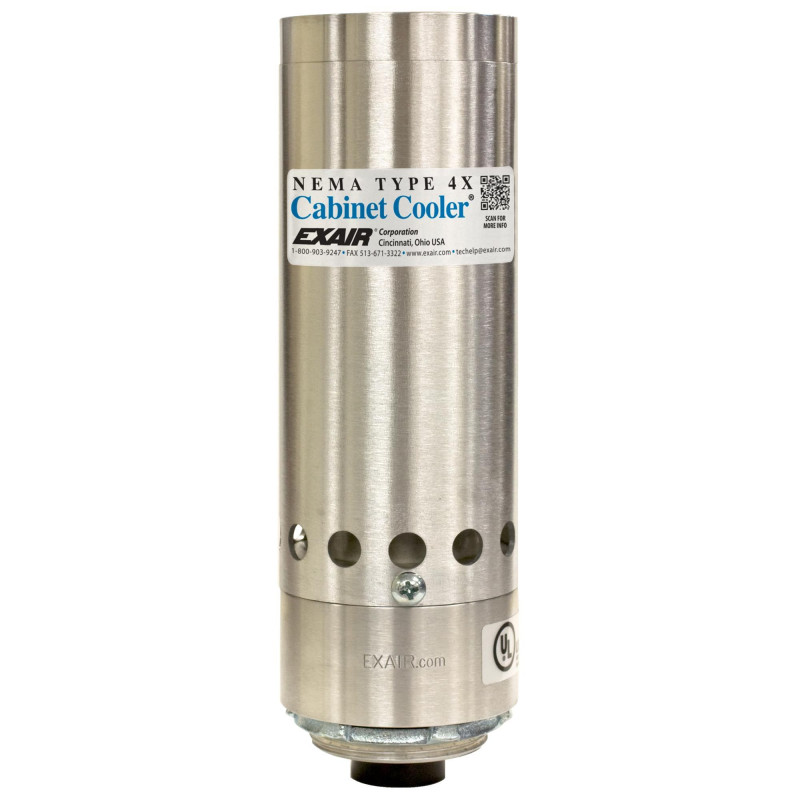

NEMA 4X Cabinet Cooler Only
NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant,
corrosion resistant, indoor/outdoor service) incorporate a low pressure relief
valve for both the vortex tube and cabinet air exhaust. This valve closes and
seals when the cooler is not operating to maintain the NEMA integrity of the
electronic enclosure. NEMA 4X (IP66) Cabinet Coolers are constructed of
stainless steel for food service and other corrosive environments. Unlike
expensive, freon-based air conditioners, EXAIR Cabinet Coolers incorporate a
vortex tube to produce cold air from compressed air - with no moving parts.
The compact Cabinet Cooler can be installed in minutes through a standard
electrical knockout. NEMA 4X Cabinet Cooler® Systems are available with a
thermostat control or in a continuous operation system. Each of these systems
will include a water-dirt filter separator to prevent water condensate and
dirt from entering your enclosure and a cold air distribution kit to direct
the air for circulation or on to hot spots. All Cabinet Coolers are UL Listed
and CE compliant.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Corrosion resistant in harsh environments
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4X integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4X (IP66) Type 303/316 Stainless Steel Cabinet Cooler - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4604SS, 4604SS-316 | 275 | 80 | 59*
4608SS, 4608SS-316 | 550 | 162 | 67*
4615SS, 4615SS-316 | 1,000 | 293 | 73
4625SS, 4625SS-316 | 1,700 | 498 | 80
4630SS, 4630SS-316 | 2,000 | 586 | 80
4640SS, 4640SS-316 | 2,800 | 821 | 82
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4604SS, 4604SS-316 | 275 | 80 | 59*
4608SS, 4608SS-316 | 550 | 162 | 67*
4615SS, 4615SS-316 | 1,000 | 293 | 73
4625SS, 4625SS-316 | 1,700 | 498 | 80
4630SS, 4630SS-316 | 2,000 | 586 | 80
4640SS, 4640SS-316 | 2,800 | 821 | 82
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Inox 303
- Certification
- ATEX
- Environnement
- NEMA 4X (IP66)
- Fonctionnement
- Continu
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Produit vendu seul
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
