Reference : ATEX4715SSJ
Price on request
NEMA 4X Continuous Operation Cabinet Cooler
A low cost, reliable way to cool and purge electronic control panels. EXAIR
Cabinet Coolers incorporate a vortex tube to produce cold air from compressed
air - with no moving parts. The compact Cabinet Cooler can be installed in
minutes through a standard electrical knockout. NEMA 4X (IP66) Cabinet Coolers
(dust-tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor
service) incorporate a low pressure relief valve for both the vortex tube and
cabinet air exhaust. This valve closes and seals when the cooler is not
operating to maintain the integrity of a NEMA 4X enclosure. NEMA 4X (IP66)
Cabinet Coolers are constructed of stainless steel for food service and
corrosive environments. They are available in many cooling capacities for
large and small control panels. NEMA 4X continuous operation Cabinet Cooler®
Systems are recommended when constant cooling and constant positive purge are

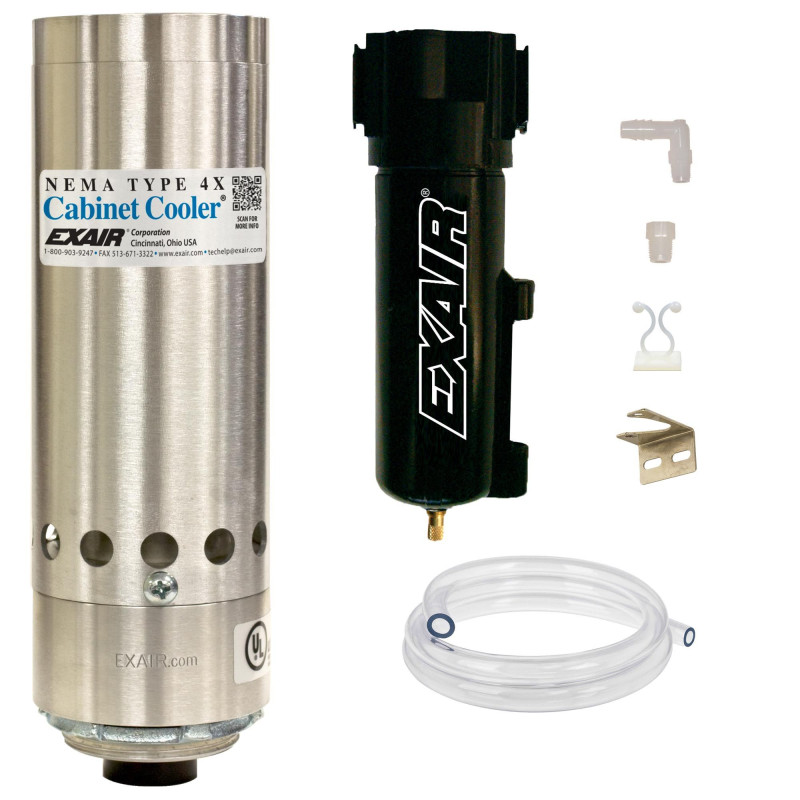

desirable. Systems for continuous operation include a Cabinet Cooler, cold air
distribution kit and filter. NEMA 4X (IP66) Cabinet Coolers are available in
many cooling capacities for large and small control panels. All Cabinet
Coolers are UL Listed and CE compliant.
Cabinet Coolers incorporate a vortex tube to produce cold air from compressed
air - with no moving parts. The compact Cabinet Cooler can be installed in
minutes through a standard electrical knockout. NEMA 4X (IP66) Cabinet Coolers
(dust-tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor
service) incorporate a low pressure relief valve for both the vortex tube and
cabinet air exhaust. This valve closes and seals when the cooler is not
operating to maintain the integrity of a NEMA 4X enclosure. NEMA 4X (IP66)
Cabinet Coolers are constructed of stainless steel for food service and
corrosive environments. They are available in many cooling capacities for
large and small control panels. NEMA 4X continuous operation Cabinet Cooler®
Systems are recommended when constant cooling and constant positive purge are
desirable. Systems for continuous operation include a Cabinet Cooler, cold air
distribution kit and filter. NEMA 4X (IP66) Cabinet Coolers are available in
many cooling capacities for large and small control panels. All Cabinet
Coolers are UL Listed and CE compliant.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Corrosion resistant in harsh environments
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4X integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4X (IP66) Type 303/316 Stainless Steel Continuous Operation -
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4704SS, 4704SS-316 | 275 | 80 | 59*
4708SS, 4708SS-316 | 550 | 162 | 67*
4715SS, 4715SS-316 | 1,000 | 293 | 73
4725SS, 4725SS-316 | 1,700 | 498 | 80
4730SS, 4730SS-316 | 2,000 | 586 | 80
4740SS, 4740SS-316 | 2,800 | 821 | 82
4750SS, 4750SS-316 | 3,400 | 997 | 84
4760SS, 4760SS-316 | 4,000 | 1,171 | 84
4770SS, 4770SS-316 | 4,800 | 1,406 | 84
4780SS, 4780SS-316 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4704SS, 4704SS-316 | 275 | 80 | 59*
4708SS, 4708SS-316 | 550 | 162 | 67*
4715SS, 4715SS-316 | 1,000 | 293 | 73
4725SS, 4725SS-316 | 1,700 | 498 | 80
4730SS, 4730SS-316 | 2,000 | 586 | 80
4740SS, 4740SS-316 | 2,800 | 821 | 82
4750SS, 4750SS-316 | 3,400 | 997 | 84
4760SS, 4760SS-316 | 4,000 | 1,171 | 84
4770SS, 4770SS-316 | 4,800 | 1,406 | 84
4780SS, 4780SS-316 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Inox 303
- Certification
- ATEX
- Environnement
- NEMA 4X (IP66)
- Fonctionnement
- Continu
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Electrovanne
- Solenoid Valve (standard) or ETC (upgrade)
- Non inclus
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
