Refroidisseurs d’armoires NEMA 4 (IP66) aluminium NHP
Reference : NHP4804
Price on request

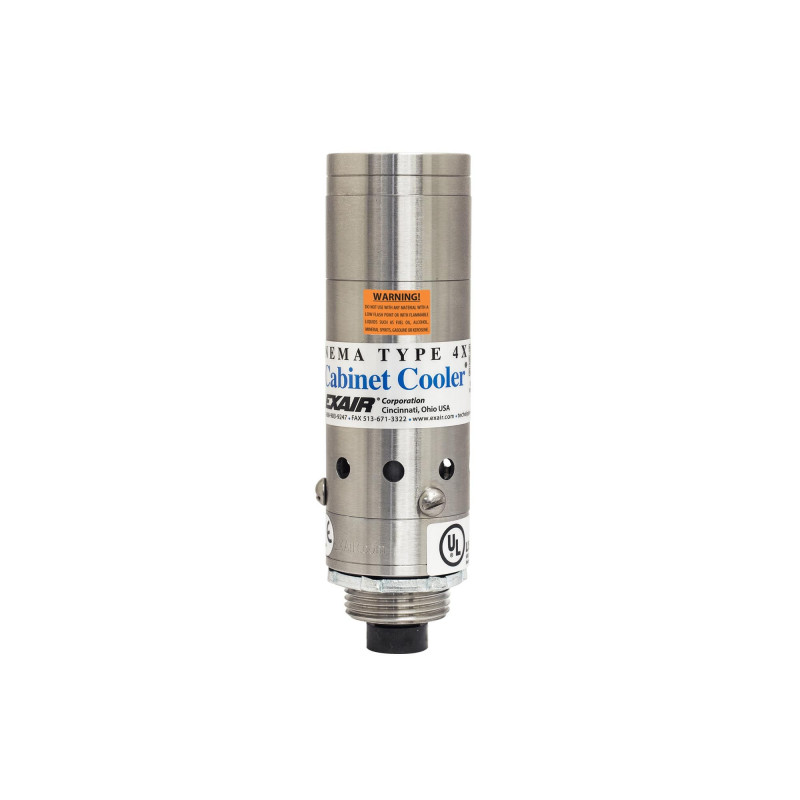

NEMA 4 Thermostat Control Cabinet Cooler
Non Hazardous Purge Cabinet Cooler® Systems provide a slight positive pressure
in the enclosure to keep contaminants from entering small holes or conduits.
NEMA 4 thermostat control systems are the most efficient way to operate a
Cabinet Cooler. They save air by activating the cooler only when internal
temperatures approach critical levels. Thermostat controlled cooler systems
are the best option when experiencing fluctuating heat loads caused by
environment or seasonal changes. The standard thermostat control systems
include an adjustable thermostat factory set at 95°F (35 ). NEMA 4 (IP66)
Cabinet Coolers are available in many cooling capacities for large and small
control panels. All Cabinet Coolers are UL Listed and CE compliant. They are a
low cost, reliable way to cool and purge electronic control panels. EXAIR
Cabinet Coolers incorporate a vortex tube to produce cold air from compressed
air - with no moving parts. The compact Cabinet Cooler can be installed in
minutes through a standard electrical knockout. NEMA 4 (IP66) Cabinet Coolers
(dust-tight, oil-tight, splash resistant, indoor/outdoor service) incorporate
a low pressure relief valve for both the vortex tube and cabinet air exhaust.
This valve closes and seals when the cooler is not operating to maintain the
integrity of a NEMA 4 enclosure.
in the enclosure to keep contaminants from entering small holes or conduits.
NEMA 4 thermostat control systems are the most efficient way to operate a
Cabinet Cooler. They save air by activating the cooler only when internal
temperatures approach critical levels. Thermostat controlled cooler systems
are the best option when experiencing fluctuating heat loads caused by
environment or seasonal changes. The standard thermostat control systems
include an adjustable thermostat factory set at 95°F (35 ). NEMA 4 (IP66)
Cabinet Coolers are available in many cooling capacities for large and small
control panels. All Cabinet Coolers are UL Listed and CE compliant. They are a
low cost, reliable way to cool and purge electronic control panels. EXAIR
Cabinet Coolers incorporate a vortex tube to produce cold air from compressed
air - with no moving parts. The compact Cabinet Cooler can be installed in
minutes through a standard electrical knockout. NEMA 4 (IP66) Cabinet Coolers
(dust-tight, oil-tight, splash resistant, indoor/outdoor service) incorporate
a low pressure relief valve for both the vortex tube and cabinet air exhaust.
This valve closes and seals when the cooler is not operating to maintain the
integrity of a NEMA 4 enclosure.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4 integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4 (IP66) Non Hazardous Purge Cabinet Cooler with Thermostat -
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4804, NHP4804-240 | 275 | 80 | 59*
NHP4808, NHP4808-240 | 550 | 162 | 67*
NHP4815, NHP4815-240 | 1,000 | 293 | 73
NHP4825, NHP4825-240 | 1,700 | 498 | 80
NHP4830, NHP4830-240 | 2,000 | 586 | 80
NHP4840, NHP4840-240 | 2,800 | 821 | 82
NHP4850, NHP4850-240 | 3,400 | 997 | 84
NHP4860, NHP4860-240 | 4,000 | 1,171 | 84
NHP4870, NHP4870-240 | 4,800 | 1,406 | 84
NHP4880, NHP4880-240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4804, NHP4804-240 | 275 | 80 | 59*
NHP4808, NHP4808-240 | 550 | 162 | 67*
NHP4815, NHP4815-240 | 1,000 | 293 | 73
NHP4825, NHP4825-240 | 1,700 | 498 | 80
NHP4830, NHP4830-240 | 2,000 | 586 | 80
NHP4840, NHP4840-240 | 2,800 | 821 | 82
NHP4850, NHP4850-240 | 3,400 | 997 | 84
NHP4860, NHP4860-240 | 4,000 | 1,171 | 84
NHP4870, NHP4870-240 | 4,800 | 1,406 | 84
NHP4880, NHP4880-240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Aluminium
- Certification
- Non certifié
- Environnement
- NEMA 4 (IP66)
- Fonctionnement
- NHP
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Electrovanne
- Tension
- 120V
- Voltage
- 120V
- Régulation Thermique
- Électrovanne
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
