Reference : NHP4004
Price on request

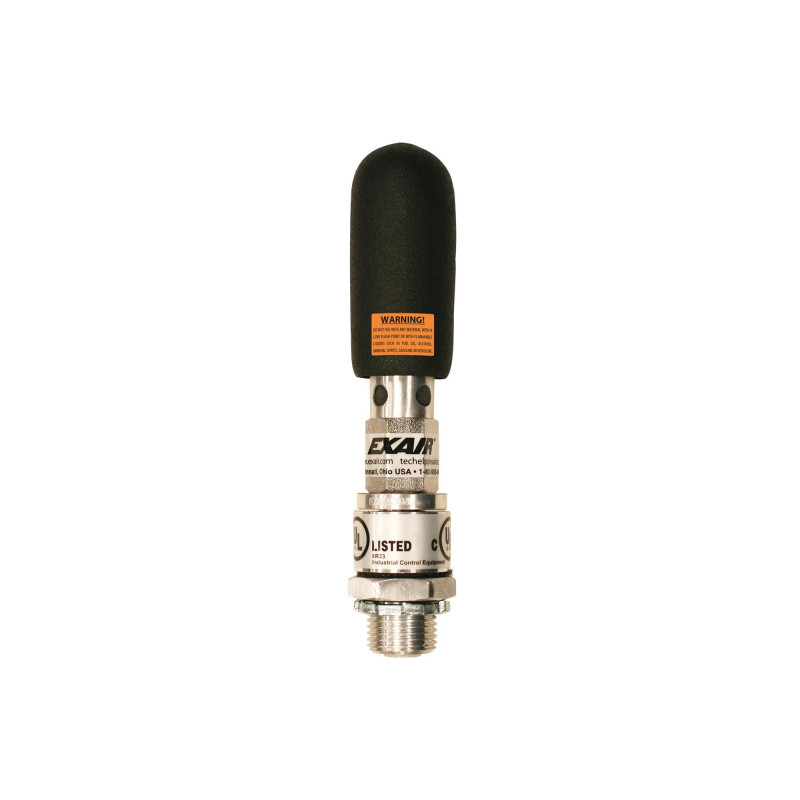

NEMA 12 Cabinet Cooler Only
NEMA 12 (IP54) Cabinet Cooler® Systems (dust-tight, oil tight) are ideal for
general industrial environments where no liquids or corrosives are present.
Unlike an expensive, freon-based air conditioner, EXAIR Cabinet Coolers
incorporate a vortex tube to produce cold air from compressed air - with no
moving parts. The compact Cabinet Cooler can be installed in minutes through a
standard electrical knockout and maintains the NEMA rating of the electronic
enclosure. All Cabinet Coolers are UL Listed and CE Compliant. They are a low
cost, reliable way of cooling and purging electronic control panels.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Keep out ambient dust and debris with a positive pressure inside cabinet
* Compact
* Cooling capacities up to 2,800 Btu/hr. (821 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 12 integrity (IP54)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Provide protection from dirt and dust
Performances +
NEMA 12 (IP54) Non Hazardous Purge Cabinet Cooler - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
NHP4004 | 275 | 80 | 59*
NHP4008 | 550 | 162 | 67*
NHP4015 | 1,000 | 293 | 73*
NHP4025 | 1,700 | 498 | 74*
NHP4030 | 2,000 | 586 | 74*
NHP4040 | 2,800 | 821 | 78*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Tube Vortex en acier inoxydable - Composants extérieurs en aluminium
- Certification
- Non certifiés
- Environnement
- NEMA 12 (IP54)
- Fonctionnement
- NHP
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Electrovanne
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
