Reference : HT4815SS-316-24VDC
Price on request

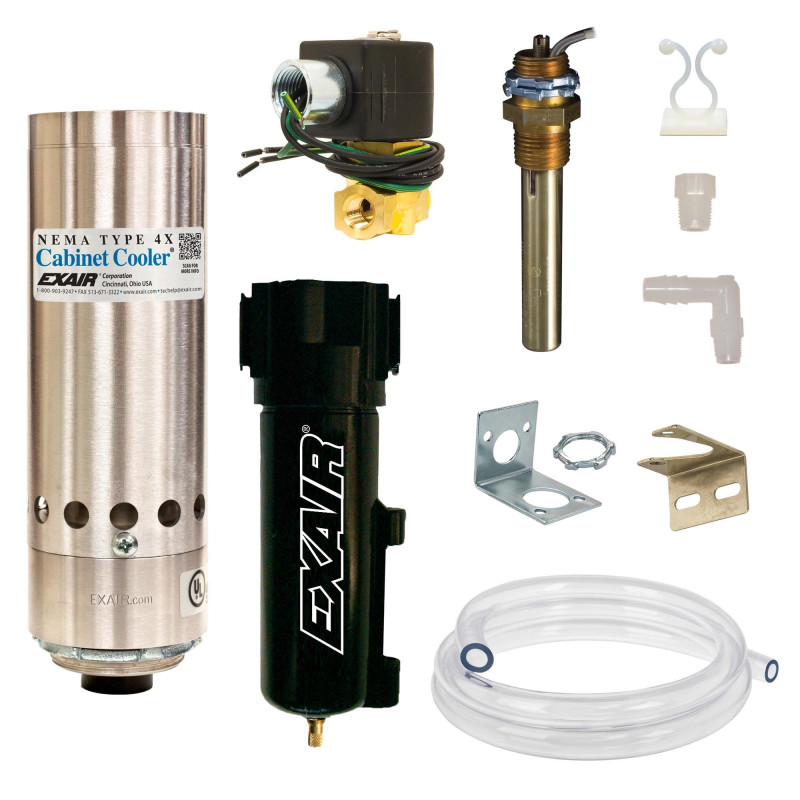

NEMA 4X Thermostat Control Cabinet Cooler
High Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F
(52 to 93 ) are available in many cooling capacities for large and small
control panels. Thermostat controlled cooler systems are the best option when
experiencing fluctuating heat loads caused by environment or seasonal changes.
The standard thermostat control systems include an adjustable thermostat
factory set at 95°F (35 ). NEMA 4X (IP66) Cabinet Cooler® Systems (dust-
tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor
service) incorporate a low pressure relief valve for both the vortex tube and
cabinet air exhaust. This valve closes and seals when the cooler is not
operating to maintain the integrity of a NEMA 4X enclosure. They are a low
cost, reliable way to cool and purge electronic control panels. All Cabinet
Coolers are UL Listed and CE compliant. EXAIR Cabinet Coolers incorporate a
vortex tube to produce cold air from compressed air - with no moving parts.
The compact Cabinet Cooler can be installed in minutes through a standard
electrical knockout.
(52 to 93 ) are available in many cooling capacities for large and small
control panels. Thermostat controlled cooler systems are the best option when
experiencing fluctuating heat loads caused by environment or seasonal changes.
The standard thermostat control systems include an adjustable thermostat
factory set at 95°F (35 ). NEMA 4X (IP66) Cabinet Cooler® Systems (dust-
tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor
service) incorporate a low pressure relief valve for both the vortex tube and
cabinet air exhaust. This valve closes and seals when the cooler is not
operating to maintain the integrity of a NEMA 4X enclosure. They are a low
cost, reliable way to cool and purge electronic control panels. All Cabinet
Coolers are UL Listed and CE compliant. EXAIR Cabinet Coolers incorporate a
vortex tube to produce cold air from compressed air - with no moving parts.
The compact Cabinet Cooler can be installed in minutes through a standard
electrical knockout.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Corrosion resistant in harsh environments
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4X integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4X (IP66) High Temperature Type 303 Stainless Steel with Thermostat
Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4815SS, HT4815SS-240, HT4815SS-24VDC | 1,000 | 293 | 73
HT4825SS, HT4825SS-240, HT4825SS-24VDC | 1,700 | 498 | 80
HT4830SS, HT4830SS-240, HT4830SS-24VDC | 2,000 | 586 | 80
HT4840SS, HT4840SS-240, HT4840SS-24VDC | 2,800 | 821 | 82
HT4850SS, HT4850SS-240, HT4850SS-24VDC | 3,400 | 997 | 84
HT4860SS, HT4860SS-240, HT4860SS-24VDC | 4,000 | 1,171 | 84
HT4870SS, HT4870SS-240, HT4870SS-24VDC | 4,800 | 1,406 | 84
HT4880SS, HT4880SS-240, HT4880SS-24VDC | 5,600 | 1,641 | 85
Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
NEMA 4X (IP66) High Temperature Type 316 Stainless Steel with Thermostat
Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4815SS-316, HT4815SS-316-240, HT4815SS-316-24VDC | 1,000 | 293 | 73
HT4825SS-316, HT4825SS-316-240, HT4825SS-316-24VDC | 1,700 | 498 | 80
HT4830SS-316, HT4830SS-316-240, HT4830SS-316-24VDC | 2,000 | 586 | 80
HT4840SS-316, HT4840SS-316-240, HT4840SS-316-24VDC | 2,800 | 821 | 82
HT4850SS-316, HT4850SS-316-240, HT4850SS-316-24VDC | 3,400 | 997 | 84
HT4860SS-316, HT4860SS-316-240, HT4860SS-316-24VDC | 4,000 | 1,171 | 84
HT4870SS-316, HT4870SS-316-240, HT4870SS-316-24VDC | 4,800 | 1,406 | 84
HT4880SS-316, HT4880SS-316-240, HT4880SS-316-24VDC | 5,600 | 1,641 | 85
Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4815SS, HT4815SS-240, HT4815SS-24VDC | 1,000 | 293 | 73
HT4825SS, HT4825SS-240, HT4825SS-24VDC | 1,700 | 498 | 80
HT4830SS, HT4830SS-240, HT4830SS-24VDC | 2,000 | 586 | 80
HT4840SS, HT4840SS-240, HT4840SS-24VDC | 2,800 | 821 | 82
HT4850SS, HT4850SS-240, HT4850SS-24VDC | 3,400 | 997 | 84
HT4860SS, HT4860SS-240, HT4860SS-24VDC | 4,000 | 1,171 | 84
HT4870SS, HT4870SS-240, HT4870SS-24VDC | 4,800 | 1,406 | 84
HT4880SS, HT4880SS-240, HT4880SS-24VDC | 5,600 | 1,641 | 85
Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
NEMA 4X (IP66) High Temperature Type 316 Stainless Steel with Thermostat
Control - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4815SS-316, HT4815SS-316-240, HT4815SS-316-24VDC | 1,000 | 293 | 73
HT4825SS-316, HT4825SS-316-240, HT4825SS-316-24VDC | 1,700 | 498 | 80
HT4830SS-316, HT4830SS-316-240, HT4830SS-316-24VDC | 2,000 | 586 | 80
HT4840SS-316, HT4840SS-316-240, HT4840SS-316-24VDC | 2,800 | 821 | 82
HT4850SS-316, HT4850SS-316-240, HT4850SS-316-24VDC | 3,400 | 997 | 84
HT4860SS-316, HT4860SS-316-240, HT4860SS-316-24VDC | 4,000 | 1,171 | 84
HT4870SS-316, HT4870SS-316-240, HT4870SS-316-24VDC | 4,800 | 1,406 | 84
HT4880SS-316, HT4880SS-316-240, HT4880SS-316-24VDC | 5,600 | 1,641 | 85
Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Inox 316
- Certification
- Non certifié
- Environnement
- NEMA 4X (IP66)
- Fonctionnement
- Régulation thermique
- Température extérieure d'utilisation
- Haute température (supérieur à 50 )
- Options
- Kit
- Tension
- 24VDC
- Voltage
- 24VDC
- Régulation Thermique
- Électrovanne
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
