Reference : HT4615SS
Price on request

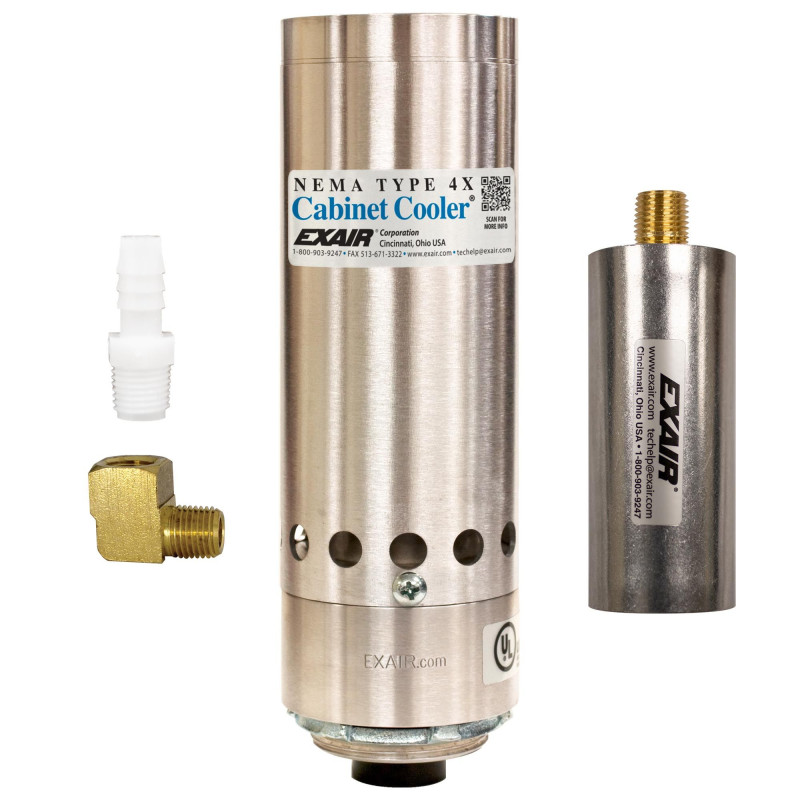

NEMA 4X Cabinet Cooler Only
High Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F
(52 to 93 ) are available in many cooling capacities for large and small
control panels. NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash
resistant, corrosion resistant, indoor/outdoor service) incorporate a low
pressure relief valve for both the vortex tube and cabinet air exhaust. This
valve closes and seals when the cooler is not operating to maintain the
integrity of a NEMA 4X enclosure. NEMA 4X (IP66) Cabinet Coolers are
constructed of stainless steel for food service and corrosive environments.
All Cabinet Coolers are UL Listed and CE compliant. A NEMA 4X Cabinet Cooler®
System is available with a thermostat control or in a continuous operation
system. Each of these systems will include a water-dirt filter separator to
prevent water condensate and dirt from entering your enclosure and cold air
distribution kit used to direct the air for circulation or on to hot spots.
They are a low cost, reliable way to cool and purge electronic control panels.
EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from
compressed air - with no moving parts. The compact Cabinet Cooler can be
installed in minutes through a standard electrical knockout.
(52 to 93 ) are available in many cooling capacities for large and small
control panels. NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash
resistant, corrosion resistant, indoor/outdoor service) incorporate a low
pressure relief valve for both the vortex tube and cabinet air exhaust. This
valve closes and seals when the cooler is not operating to maintain the
integrity of a NEMA 4X enclosure. NEMA 4X (IP66) Cabinet Coolers are
constructed of stainless steel for food service and corrosive environments.
All Cabinet Coolers are UL Listed and CE compliant. A NEMA 4X Cabinet Cooler®
System is available with a thermostat control or in a continuous operation
system. Each of these systems will include a water-dirt filter separator to
prevent water condensate and dirt from entering your enclosure and cold air
distribution kit used to direct the air for circulation or on to hot spots.
They are a low cost, reliable way to cool and purge electronic control panels.
EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from
compressed air - with no moving parts. The compact Cabinet Cooler can be
installed in minutes through a standard electrical knockout.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Corrosion resistant in harsh environments
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4X integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4X (IP66) Type 303/316 Stainless Steel High Temperature Cabinet
Cooler - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4615SS, HT4615SS-316 | 1,000 | 293 | 73
HT4625SS, HT4625SS-316 | 1,700 | 498 | 80
HT4630SS, HT4630SS-316 | 2,000 | 586 | 80
HT4640SS, HT4640SS-316 | 2,800 | 821 | 82
Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Cooler - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
HT4615SS, HT4615SS-316 | 1,000 | 293 | 73
HT4625SS, HT4625SS-316 | 1,700 | 498 | 80
HT4630SS, HT4630SS-316 | 2,000 | 586 | 80
HT4640SS, HT4640SS-316 | 2,800 | 821 | 82
Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Inox 303
- Certification
- Non certifié
- Environnement
- NEMA 4X (IP66)
- Fonctionnement
- Continu
- Température extérieure d'utilisation
- Haute température (supérieur à 50 )
- Options
- Produit vendu seul
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
