Reference : 4804SS-24VDC
Price on request

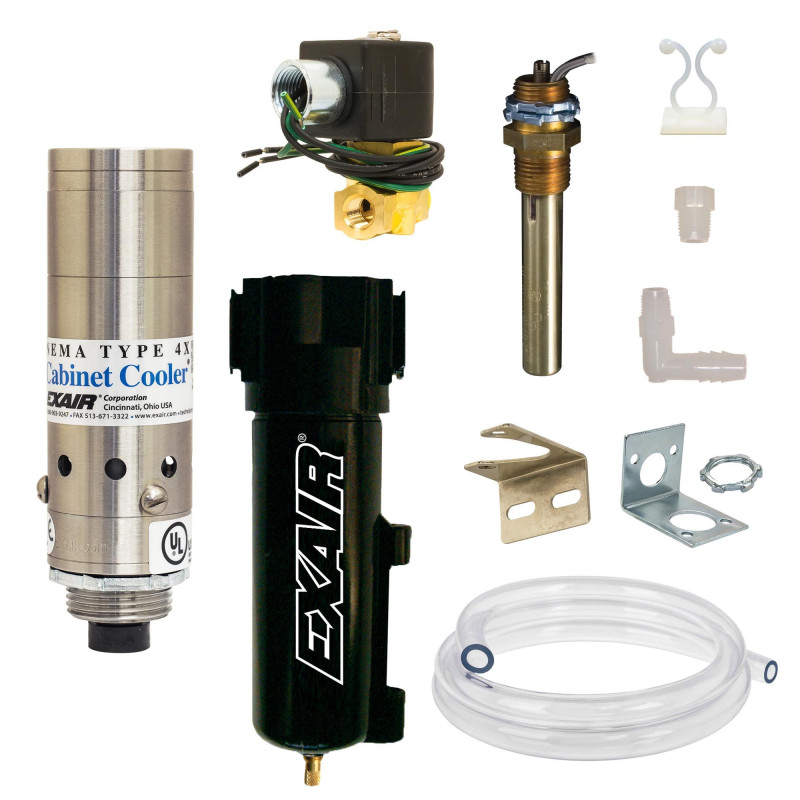

NEMA 4X Thermostat Control Cabinet Cooler
NEMA 4X thermostat control systems are the most efficient way to operate a
Cabinet Cooler. They save air by activating the cooler only when internal
temperatures approach critical levels. Thermostat controlled cooler systems
are the best option when experiencing fluctuating heat loads caused by
environment or seasonal changes. The standard thermostat control systems
include an adjustable thermostat factory set at 95°F (35 ). NEMA 4X (IP66)
Cabinet Coolers are constructed of stainless steel for food service and
corrosive environments. EXAIR Cabinet Coolers incorporate a vortex tube to
produce cold air from compressed air - with no moving parts. The compact
Cabinet Cooler can be installed in minutes through a standard electrical
knockout. NEMA 4X (IP66) Cabinet Cooler® Systems (dust-tight, oil-tight,
splash resistant, corrosion resistant, indoor/outdoor service) incorporate a
low pressure relief valve for both the vortex tube and cabinet air exhaust.
This valve closes and seals when the cooler is not operating to maintain the
integrity of a NEMA 4 enclosure. They are available in many cooling capacities
for large and small control panels. All Cabinet Coolers are UL Listed and CE
compliant.
Cabinet Cooler. They save air by activating the cooler only when internal
temperatures approach critical levels. Thermostat controlled cooler systems
are the best option when experiencing fluctuating heat loads caused by
environment or seasonal changes. The standard thermostat control systems
include an adjustable thermostat factory set at 95°F (35 ). NEMA 4X (IP66)
Cabinet Coolers are constructed of stainless steel for food service and
corrosive environments. EXAIR Cabinet Coolers incorporate a vortex tube to
produce cold air from compressed air - with no moving parts. The compact
Cabinet Cooler can be installed in minutes through a standard electrical
knockout. NEMA 4X (IP66) Cabinet Cooler® Systems (dust-tight, oil-tight,
splash resistant, corrosion resistant, indoor/outdoor service) incorporate a
low pressure relief valve for both the vortex tube and cabinet air exhaust.
This valve closes and seals when the cooler is not operating to maintain the
integrity of a NEMA 4 enclosure. They are available in many cooling capacities
for large and small control panels. All Cabinet Coolers are UL Listed and CE
compliant.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Corrosion resistant in harsh environments
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4X integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4X (IP66) Type 303 Stainless Steel with Thermostat Control -
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4804SS, 4804SS-240, 4804SS-24VDC, 4804SS-ETC120, 4804SS-ETC240 | 275 | 80 |
59*
4808SS, 4808SS-240, 4808SS-24VDC, 4808SS-ETC120, 4808SS-ETC240 | 550 | 162 |
67*
4815SS, 4815SS-240, 4815SS-24VDC, 4815SS-ETC120, 4815SS-ETC240 | 1,000 | 293 |
73
4825SS, 4825SS-240, 4825SS-24VDC, 4825SS-ETC120, 4825SS-ETC240 | 1,700 | 498 |
80
4830SS, 4830SS-240, 4830SS-24VDC, 4830SS-ETC120, 4830SS-ETC240 | 2,000 | 586 |
80
4840SS, 4840SS-240, 4840SS-24VDC, 4840SS-ETC120, 4840SS-ETC240 | 2,800 | 821 |
82
4850SS, 4850SS-240, 4850SS-24VDC, 4850SS-ETC120, 4850SS-ETC240 | 3,400 | 997 |
84
4860SS, 4860SS-240, 4860SS-24VDC, 4860SS-ETC120, 4860SS-ETC240 | 4,000 | 1,171
| 84
4870SS, 4870SS-240, 4870SS-24VDC, 4870SS-ETC120, 4870SS-ETC240 | 4,800 | 1,406
| 84
4880SS, 4880SS-240, 4880SS-24VDC, 4880SS-ETC120, 4880SS-ETC240 | 5,600 | 1,641
| 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
NEMA 4X (IP66) Type 316 Stainless Steel with Thermostat Control -
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4804SS-316, 4804SS-316-240, 4804SS-316-24VDC, 4804SS-316-ETC120,
4804SS-316-ETC240 | 275 | 80 | 59*
4808SS-316, 4808SS-316-240, 4808SS-316-24VDC, 4808SS-316-ETC120,
4808SS-316-ETC240 | 550 | 162 | 67*
4815SS-316, 4815SS-316-240, 4815SS-316-24VDC, 4815SS-316-ETC120,
4815SS-316-ETC240 | 1,000 | 293 | 73
4825SS-316, 4825SS-316-240, 4825SS-316-24VDC, 4825SS-316-ETC120,
4825SS-316-ETC240 | 1,700 | 498 | 80
4830SS-316, 4830SS-316-240, 4830SS-316-24VDC, 4830SS-316-ETC120,
4830SS-316-ETC240 | 2,000 | 586 | 80
4840SS-316, 4840SS-316-240, 4840SS-316-24VDC, 4840SS-316-ETC120,
4840SS-316-ETC240 | 2,800 | 821 | 82
4850SS-316, 4850SS-316-240, 4850SS-316-24VDC, 4850SS-316-ETC120,
4850SS-316-ETC240 | 3,400 | 997 | 84
4860SS-316, 4860SS-316-240, 4860SS-316-24VDC, 4860SS-316-ETC120,
4860SS-316-ETC240 | 4,000 | 1,171 | 84
4870SS-316, 4870SS-316-240, 4870SS-316-24VDC, 4870SS-316-ETC120,
4870SS-316-ETC240 | 4,800 | 1,406 | 84
4880SS-316, 4880SS-316-240, 4880SS-316-24VDC, 4880SS-316-ETC120,
4880SS-316-ETC240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4804SS, 4804SS-240, 4804SS-24VDC, 4804SS-ETC120, 4804SS-ETC240 | 275 | 80 |
59*
4808SS, 4808SS-240, 4808SS-24VDC, 4808SS-ETC120, 4808SS-ETC240 | 550 | 162 |
67*
4815SS, 4815SS-240, 4815SS-24VDC, 4815SS-ETC120, 4815SS-ETC240 | 1,000 | 293 |
73
4825SS, 4825SS-240, 4825SS-24VDC, 4825SS-ETC120, 4825SS-ETC240 | 1,700 | 498 |
80
4830SS, 4830SS-240, 4830SS-24VDC, 4830SS-ETC120, 4830SS-ETC240 | 2,000 | 586 |
80
4840SS, 4840SS-240, 4840SS-24VDC, 4840SS-ETC120, 4840SS-ETC240 | 2,800 | 821 |
82
4850SS, 4850SS-240, 4850SS-24VDC, 4850SS-ETC120, 4850SS-ETC240 | 3,400 | 997 |
84
4860SS, 4860SS-240, 4860SS-24VDC, 4860SS-ETC120, 4860SS-ETC240 | 4,000 | 1,171
| 84
4870SS, 4870SS-240, 4870SS-24VDC, 4870SS-ETC120, 4870SS-ETC240 | 4,800 | 1,406
| 84
4880SS, 4880SS-240, 4880SS-24VDC, 4880SS-ETC120, 4880SS-ETC240 | 5,600 | 1,641
| 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
NEMA 4X (IP66) Type 316 Stainless Steel with Thermostat Control -
Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4804SS-316, 4804SS-316-240, 4804SS-316-24VDC, 4804SS-316-ETC120,
4804SS-316-ETC240 | 275 | 80 | 59*
4808SS-316, 4808SS-316-240, 4808SS-316-24VDC, 4808SS-316-ETC120,
4808SS-316-ETC240 | 550 | 162 | 67*
4815SS-316, 4815SS-316-240, 4815SS-316-24VDC, 4815SS-316-ETC120,
4815SS-316-ETC240 | 1,000 | 293 | 73
4825SS-316, 4825SS-316-240, 4825SS-316-24VDC, 4825SS-316-ETC120,
4825SS-316-ETC240 | 1,700 | 498 | 80
4830SS-316, 4830SS-316-240, 4830SS-316-24VDC, 4830SS-316-ETC120,
4830SS-316-ETC240 | 2,000 | 586 | 80
4840SS-316, 4840SS-316-240, 4840SS-316-24VDC, 4840SS-316-ETC120,
4840SS-316-ETC240 | 2,800 | 821 | 82
4850SS-316, 4850SS-316-240, 4850SS-316-24VDC, 4850SS-316-ETC120,
4850SS-316-ETC240 | 3,400 | 997 | 84
4860SS-316, 4860SS-316-240, 4860SS-316-24VDC, 4860SS-316-ETC120,
4860SS-316-ETC240 | 4,000 | 1,171 | 84
4870SS-316, 4870SS-316-240, 4870SS-316-24VDC, 4870SS-316-ETC120,
4870SS-316-ETC240 | 4,800 | 1,406 | 84
4880SS-316, 4880SS-316-240, 4880SS-316-24VDC, 4880SS-316-ETC120,
4880SS-316-ETC240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Inox 303
- Certification
- Non certifié
- Environnement
- NEMA 4X (IP66)
- Fonctionnement
- Régulation thermique
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Kit
- Tension
- 24VDC
- Voltage
- 24VDC
- Régulation Thermique
- Électrovanne
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
