Reference : 4604
Price on request

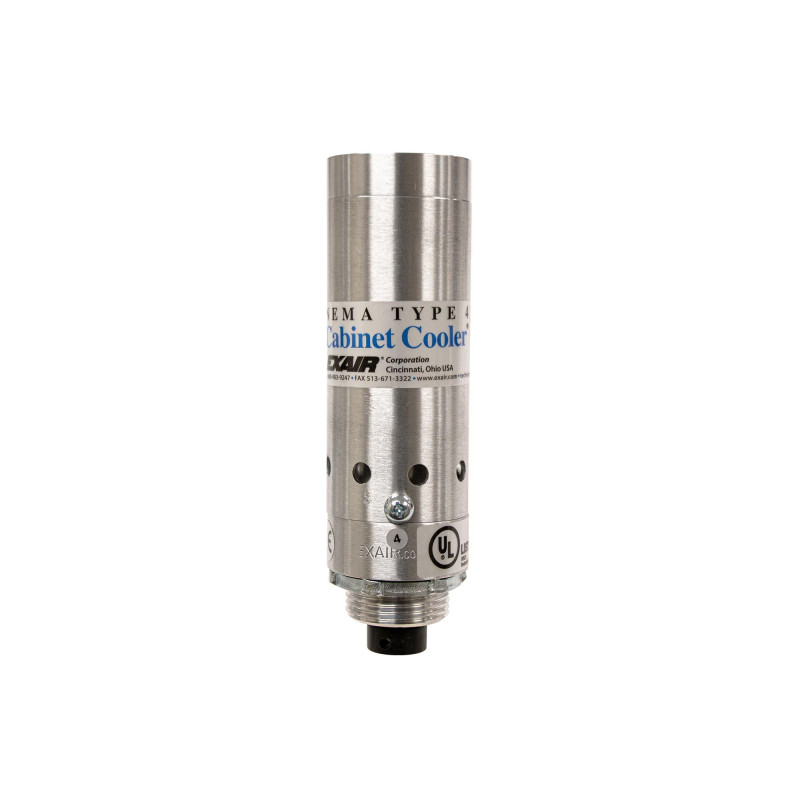

NEMA 4 Cabinet Cooler Only
NEMA 4 (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant,
indoor/outdoor service) incorporate a low pressure relief valve for both the
vortex tube and cabinet air exhaust. This valve closes and seals when the
cooler is not operating to maintain the NEMA integrity of the electronic
enclosure. NEMA 4 (IP66) Cabinet Coolers are available in many cooling
capacities for large and small control panels. Unlike an expensive, freon-
based air conditioner, EXAIR Cabinet Coolers incorporate a vortex tube to
produce cold air from compressed air - with no moving parts. They can be
installed in minutes through a standard electrical knockout. NEMA 4 Cabinet
Cooler® Systems are available with a thermostat control or as a continuous
operation system. Each of these systems include a water-dirt filter separator
to prevent water condensate and dirt from entering your enclosure and a cold
air distribution kit used to direct the air for circulation or on to hot
spots. All Cabinet Coolers are UL Listed and CE Compliant. They are a low
cost, reliable way of cooling and purging electronic control panels.
indoor/outdoor service) incorporate a low pressure relief valve for both the
vortex tube and cabinet air exhaust. This valve closes and seals when the
cooler is not operating to maintain the NEMA integrity of the electronic
enclosure. NEMA 4 (IP66) Cabinet Coolers are available in many cooling
capacities for large and small control panels. Unlike an expensive, freon-
based air conditioner, EXAIR Cabinet Coolers incorporate a vortex tube to
produce cold air from compressed air - with no moving parts. They can be
installed in minutes through a standard electrical knockout. NEMA 4 Cabinet
Cooler® Systems are available with a thermostat control or as a continuous
operation system. Each of these systems include a water-dirt filter separator
to prevent water condensate and dirt from entering your enclosure and a cold
air distribution kit used to direct the air for circulation or on to hot
spots. All Cabinet Coolers are UL Listed and CE Compliant. They are a low
cost, reliable way of cooling and purging electronic control panels.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 4 integrity (IP66)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Stop dirt contamination
* Provide washdown protection
Performances +
NEMA 4 (IP66) Cabinet Cooler - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4604 | 275 | 80 | 59*
4608 | 550 | 162 | 67*
4615 | 1,000 | 293 | 73
4625 | 1,700 | 498 | 80
4630 | 2,000 | 586 | 80
4640 | 2,800 | 821 | 82
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4604 | 275 | 80 | 59*
4608 | 550 | 162 | 67*
4615 | 1,000 | 293 | 73
4625 | 1,700 | 498 | 80
4630 | 2,000 | 586 | 80
4640 | 2,800 | 821 | 82
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Aluminium
- Certification
- Non certifié
- Environnement
- NEMA 4 (IP66)
- Fonctionnement
- Continu
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Produit vendu seul
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
