Reference : 4304-24VDC
Price on request

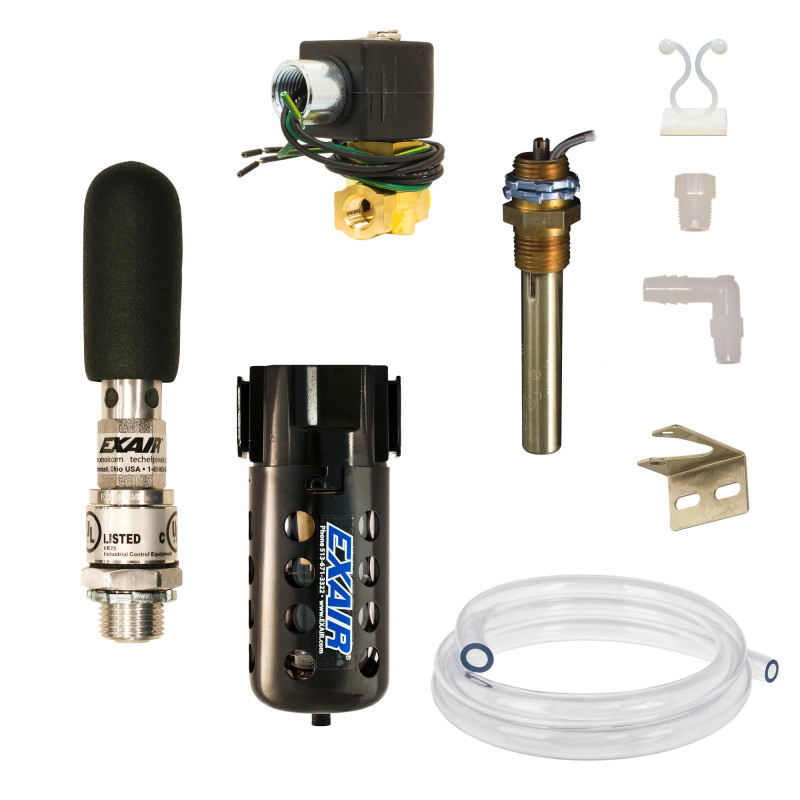

NEMA 12 Thermostat Control Cabinet Cooler
NEMA 12 (IP54) Cabinet Cooler® Systems (dust-tight, oil-tight) are ideal for
general industrial environments where no liquids or corrosives are present.
Dirt, dust and oil resistant NEMA 12 thermostat control systems are the most
efficient way to operate a Cabinet Cooler. They save air by activating the
cooler only when internal temperatures approach critical levels. Thermostat
controlled cooler systems are the best option when experiencing fluctuating
heat loads caused by environment or seasonal changes. Standard thermostat
control systems include an adjustable thermostat factory set at 95°F (35 ).
The NEMA 12 (IP54) compact Cabinet Cooler can be installed in minutes through
a standard electrical knockout and maintains the NEMA rating of the electronic
enclosure. All Cabinet Coolers are UL Listed and CE compliant. They are a low
cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet
Coolers incorporate a vortex tube to produce cold air from compressed air -
with no moving parts.
general industrial environments where no liquids or corrosives are present.
Dirt, dust and oil resistant NEMA 12 thermostat control systems are the most
efficient way to operate a Cabinet Cooler. They save air by activating the
cooler only when internal temperatures approach critical levels. Thermostat
controlled cooler systems are the best option when experiencing fluctuating
heat loads caused by environment or seasonal changes. Standard thermostat
control systems include an adjustable thermostat factory set at 95°F (35 ).
The NEMA 12 (IP54) compact Cabinet Cooler can be installed in minutes through
a standard electrical knockout and maintains the NEMA rating of the electronic
enclosure. All Cabinet Coolers are UL Listed and CE compliant. They are a low
cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet
Coolers incorporate a vortex tube to produce cold air from compressed air -
with no moving parts.
Applications +
• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales
Avantages +
* Low cost
* Compact
* Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
* Quiet
* Install in minutes
* Maintain NEMA 12 integrity (IP54)
* Stabilize enclosure temperature and humidity
* No CFC's
* No moving parts - maintenance free
* Mount in standard electrical knockout
* Stop nuisance tripping
* Stop heat damage
* Eliminate fans and filters
* Eliminate lost production
* Stop circuit drift
* Provide protection from dirt and dust
Performances +
NEMA 12 (IP54) Cabinet Cooler with Thermostat - Performance
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4304, 4304-240, 4304-24VDC, 4304-ETC120, 4304-ETC240 | 275 | 80 | 59*
4308, 4308-240, 4308-24VDC, 4308-ETC120, 4308-ETC240 | 550 | 162 | 67*
4315, 4315-240, 4315-24VDC, 4315-ETC120, 4315-ETC240 | 1,000 | 293 | 73*
4325, 4325-240, 4325-24VDC, 4325-ETC120, 4325-ETC240 | 1,700 | 498 | 74*
4330, 4330-240, 4330-24VDC, 4330-ETC120, 4330-ETC240 | 2,000 | 586 | 74*
4340, 4340-240, 4340-24VDC, 4340-ETC120, 4340-ETC240 | 2,800 | 821 | 78*
4350, 4350-240, 4350-24VDC, 4350-ETC120, 4350-ETC240 | 3,400 | 997 | 75*
4360, 4360-240, 4360-24VDC, 4360-ETC120, 4360-ETC240 | 4,000 | 1,171 | 77*
4370, 4370-240, 4370-24VDC, 4370-ETC120, 4370-ETC240 | 4,800 | 1,406 | 77*
4380, 4380-240, 4380-24VDC, 4380-ETC120, 4380-ETC240 | 5,600 | 1,641 | 79*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
Model | Capacity | Sound Level dBA
Btu/hr. | Watts
4304, 4304-240, 4304-24VDC, 4304-ETC120, 4304-ETC240 | 275 | 80 | 59*
4308, 4308-240, 4308-24VDC, 4308-ETC120, 4308-ETC240 | 550 | 162 | 67*
4315, 4315-240, 4315-24VDC, 4315-ETC120, 4315-ETC240 | 1,000 | 293 | 73*
4325, 4325-240, 4325-24VDC, 4325-ETC120, 4325-ETC240 | 1,700 | 498 | 74*
4330, 4330-240, 4330-24VDC, 4330-ETC120, 4330-ETC240 | 2,000 | 586 | 74*
4340, 4340-240, 4340-24VDC, 4340-ETC120, 4340-ETC240 | 2,800 | 821 | 78*
4350, 4350-240, 4350-24VDC, 4350-ETC120, 4350-ETC240 | 3,400 | 997 | 75*
4360, 4360-240, 4360-24VDC, 4360-ETC120, 4360-ETC240 | 4,000 | 1,171 | 77*
4370, 4370-240, 4370-24VDC, 4370-ETC120, 4370-ETC240 | 4,800 | 1,406 | 77*
4380, 4380-240, 4380-24VDC, 4380-ETC120, 4380-ETC240 | 5,600 | 1,641 | 79*
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.
- Matériaux
- Tube Vortex en acier inoxydable - Composants extérieurs en aluminium
- Certification
- Non certifiés
- Environnement
- NEMA 12 (IP54)
- Fonctionnement
- Régulation thermique
- Température extérieure d'utilisation
- inférieur à 50
- Options
- Kit
- Tension
- 24VDC
- Voltage
- 24VDC
- Régulation Thermique
- Électrovanne
How it works +
Compressed air enters the vortex tube powered Cabinet Cooler and is
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
converted into two streams, one hot and one cold. Hot air from the vortex tube
is muffled and exhausted through the vortex tube exhaust. The cold air is
discharged into the control cabinet through the cold air distribution kit. The
displaced hot air in the cabinet rises and exhausts to atmosphere through the
cabinet air exhaust at a slight positive pressure. Thus, the control cabinet
is both cooled and purged with cool, clean air. Outside air is never allowed
to enter the control panel.
