Reference : 2803DX
Price on request
Avantages +
Advantages
* Up to 10 dBA noise reduction
* Reduced air consumption
* 30:1 air amplification
* Aluminum or stainless steel
* Compact, rugged, easy to install
* Stock lengths up to 48" 1219 mm
* No moving parts
* Compressed air inlets on each end
* Variable force and flow
* Up to 10 dBA noise reduction
* Reduced air consumption
* 30:1 air amplification
* Aluminum or stainless steel
* Compact, rugged, easy to install
* Stock lengths up to 48" 1219 mm
* No moving parts
* Compressed air inlets on each end
* Variable force and flow
Accessoires +
**Air Knife Plumbing Kit -** Full-Flow Air Knives that are 24" or longer must
be supplied with compressed air at multiple inlets on the knife. The Air Knife
Plumbing Kits prevent you from searching for the right fittings or using
undersized air supply lines. They provide properly sized compressed air hose
and fittings to interconnect the rear or end compressed air inlets for best
performance. Plumbing kits for Full-Flow Air Knives Inclusde a pressure gauge
to monitor pressure at the Full-Flow Air Knife, which is an indication of
proper air supply. They also Inclusde nitrile/PVC hose and brass fittings.
**Coupling Bracket Kits -** Some applications require a Full-Flow Air Knife
that is longer than our 36" 914 length. Coupling Bracket Kits that join
two Full-Flow Air Knives together are available. The kit Inclusdes two rigid
plates along with the assembly screws. All models Inclusde stainless steel
screws.
be supplied with compressed air at multiple inlets on the knife. The Air Knife
Plumbing Kits prevent you from searching for the right fittings or using
undersized air supply lines. They provide properly sized compressed air hose
and fittings to interconnect the rear or end compressed air inlets for best
performance. Plumbing kits for Full-Flow Air Knives Inclusde a pressure gauge
to monitor pressure at the Full-Flow Air Knife, which is an indication of
proper air supply. They also Inclusde nitrile/PVC hose and brass fittings.
**Coupling Bracket Kits -** Some applications require a Full-Flow Air Knife
that is longer than our 36" 914 length. Coupling Bracket Kits that join
two Full-Flow Air Knives together are available. The kit Inclusdes two rigid
plates along with the assembly screws. All models Inclusde stainless steel
screws.
Performances +
Full-Flow Air Knife Performance
---
Pressure Supply , Air Consumption per inch (25 ) , Velocity @ 6" 152 from
target , Sound Level @ 3' 914 , Force per Inch (25 ) @ 6" 152 from
target
PSIG , BAR , SCFM , SLPM , FPM , , A , OUNCES , GRAMS
20 , 1.4 , 1.1 , 31 , 3,000 , 15.2 , 64 , 0.4 , 11
40 , 2.8 , 1.8 , 51 , 5,000 , 25.4 , 72 , 1.0 , 28
60 , 4.1 , 2.4 , 68 , 7,500 , 38.1 , 76 , 1.6 , 45
80 , 5.5 , 3.1 , 88 , 10,000 , 50.8 , 80 , 2.3 , 65
100 , 6.9 , 3.8 , 108 , 12,000 , 61.0 , 83 , 2.9 , 82
12" 305 Full-Flow Air Knife tested with .002" (0.05 ) thick shim
installed.
---
Pressure Supply , Air Consumption per inch (25 ) , Velocity @ 6" 152 from
target , Sound Level @ 3' 914 , Force per Inch (25 ) @ 6" 152 from
target
PSIG , BAR , SCFM , SLPM , FPM , , A , OUNCES , GRAMS
20 , 1.4 , 1.1 , 31 , 3,000 , 15.2 , 64 , 0.4 , 11
40 , 2.8 , 1.8 , 51 , 5,000 , 25.4 , 72 , 1.0 , 28
60 , 4.1 , 2.4 , 68 , 7,500 , 38.1 , 76 , 1.6 , 45
80 , 5.5 , 3.1 , 88 , 10,000 , 50.8 , 80 , 2.3 , 65
100 , 6.9 , 3.8 , 108 , 12,000 , 61.0 , 83 , 2.9 , 82
12" 305 Full-Flow Air Knife tested with .002" (0.05 ) thick shim
installed.
- Matériaux
- Aluminium
- Longueur du flux (mm)
- 76 à 914
- Vitesse du flux d’air (à 152 mm et 5.5 bar)
- 50,8
- Force par 25 mm (à 152 mm et 5.5 bar)
- 65
- Niveau sonore à 5.5 bar (dB)
- 80
- Cale standard
- 0,05
- Emplacements Entrées d'air
- Arrière
- Dimensions
- 37x45

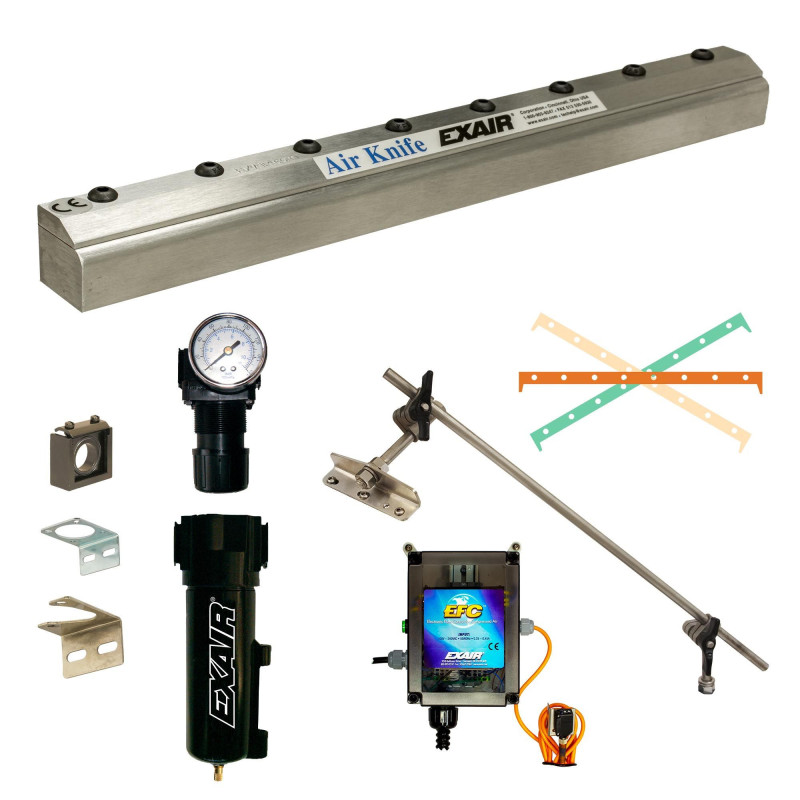

- Livrés en standard
- Bouchons d'entrée d'air
- Compléments
- Bras de montage universel, filtres décanteurs, régulateurs de pression, filtres déshuileurs, électrovannes, contrôleurs de débit électronique (EFC), jeux de cales
- EFC Electronic Flow Control
- Inclus
- Air Knife Mounting System
- Inclus
- Flux
- Effect coanda
- Flux sur longueur
- Oui
- Rapport d'amplification
- 30:1
- Filetage entrées d’air
- 1/4 FNPT/FBSP
How it works +
How the Full-Flow Air Knife Works
---
# Compressed air flows through the inlet (1) into a plenum chamber. It is
then throttled through a thin nozzle (2) extending the length of the Full-Flow
Air Knife. This primary airstream adheres to the Coanda profile (3), which
turns it 90° and directs the flow down the face of the unit. The primary
stream i ediately begins to entrain surrounding air (4), for an amplification
ratio of 30:1 at 6" 152 away.
---
# Compressed air flows through the inlet (1) into a plenum chamber. It is
then throttled through a thin nozzle (2) extending the length of the Full-Flow
Air Knife. This primary airstream adheres to the Coanda profile (3), which
turns it 90° and directs the flow down the face of the unit. The primary
stream i ediately begins to entrain surrounding air (4), for an amplification
ratio of 30:1 at 6" 152 away.
