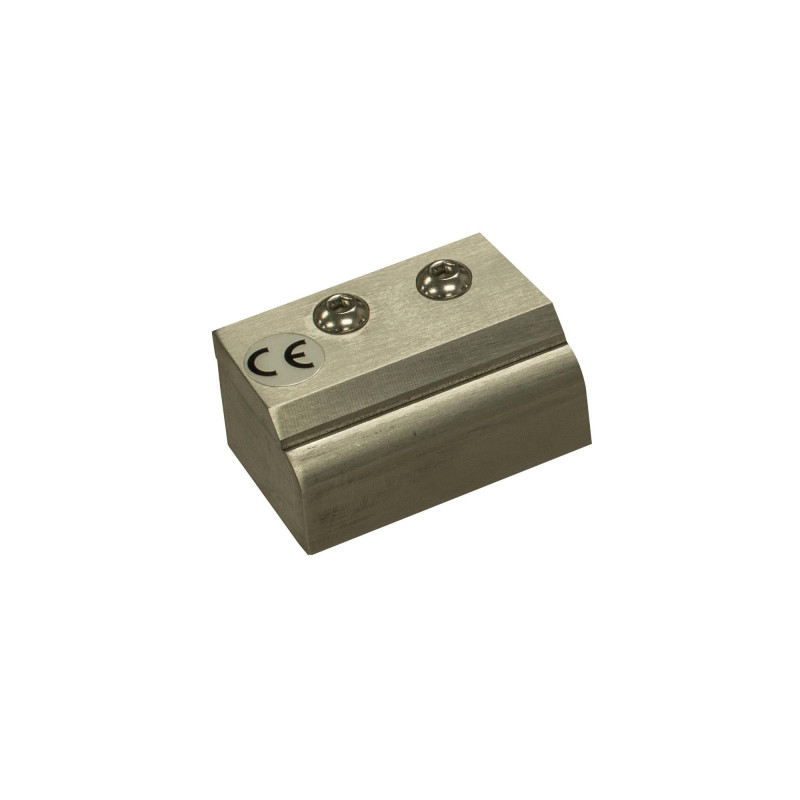

Reference : 2603SS
Price on request
Avantages +
Advantages
* Up to 10 dBA noise reduction
* Reduced air consumption
* 30:1 air amplification
* Aluminum or stainless steel
* Compact, rugged, easy to install
* Stock lengths up to 48" 1219 mm
* No moving parts
* Compressed air inlets on each end
* Variable force and flow
* Up to 10 dBA noise reduction
* Reduced air consumption
* 30:1 air amplification
* Aluminum or stainless steel
* Compact, rugged, easy to install
* Stock lengths up to 48" 1219 mm
* No moving parts
* Compressed air inlets on each end
* Variable force and flow
Accessoires +
**Universal Air Knife Mounting System -** The Model 9060 Universal Air Knife
Mounting System is used to provide secure, precise positioning for any of the
EXAIR Air Knives. The Air Knife can quickly and easily be moved within close
proximity of the part to improve effectiveness. It can be mounted on either
the top or bottom of most Air Knives (Super Air Knife, Standard Air Knife and
Full-Flow Air Knife). The Universal Air Knife Mounting System has a durable,
stainless steel construction that is suitable for a variety of industrial
applications.
The Universal Air Knife Mounting System can be articulated into any position
and provides a maximum extension of 30" 762 . A 1/2" diameter hole is
required for mounting. Alternatively, the bolt can be threaded directly into a
1/2"-13 tapped hole. For any style Air Knife that is 24" 610 to 54"
1372 , use (2) Universal Air Knife Mounting Systems. For knives 55"
(1397 ) - 71" (1803 ), use (3). For 72" 1829 - 95" (2413 ), use (4).
For knives 96" 2438 and over, use (5).
**Air Knife Plumbing Kit -** Full-Flow Air Knives that are 24" or longer must
be supplied with compressed air at multiple inlets on the knife. The Air Knife
Plumbing Kits prevent you from searching for the right fittings or using
undersized air supply lines. They provide properly sized compressed air hose
and fittings to interconnect the rear or end compressed air inlets for best
performance. Plumbing kits for Full-Flow Air Knives Inclusde a pressure gauge
to monitor pressure at the Full-Flow Air Knife, which is an indication of
proper air supply. They also Inclusde nitrile/PVC hose and brass fittings.
**Coupling Bracket Kits -** Some applications require a Full-Flow Air Knife
that is longer than our 36" 914 length. Coupling Bracket Kits that join
two Full-Flow Air Knives together are available. The kit Inclusdes two rigid
plates along with the assembly screws. All models Inclusde stainless steel
screws.
**Air Knife Shim Sets -** Compressed air exhausts through a gap in the Air
Knife which is set with a shim. Force and flow may be increased by adding
shims.
Shim sets for aluminum Full-Flow Air Knives Inclusde a .001" (0.03 ) Amber
color, .003" (0.08 ) Green color, and .004" (0.10 ) thick Tan color plastic
shim . A Red color .002" (0.05 ) thick shim comes installed in the Full-Flow
Air Knife. Shim sets for stainless steel Full-Flow Air Knives Inclusdes (1)
.002" (0.05 ) thick stainless steel shim.
Mounting System is used to provide secure, precise positioning for any of the
EXAIR Air Knives. The Air Knife can quickly and easily be moved within close
proximity of the part to improve effectiveness. It can be mounted on either
the top or bottom of most Air Knives (Super Air Knife, Standard Air Knife and
Full-Flow Air Knife). The Universal Air Knife Mounting System has a durable,
stainless steel construction that is suitable for a variety of industrial
applications.
The Universal Air Knife Mounting System can be articulated into any position
and provides a maximum extension of 30" 762 . A 1/2" diameter hole is
required for mounting. Alternatively, the bolt can be threaded directly into a
1/2"-13 tapped hole. For any style Air Knife that is 24" 610 to 54"
1372 , use (2) Universal Air Knife Mounting Systems. For knives 55"
(1397 ) - 71" (1803 ), use (3). For 72" 1829 - 95" (2413 ), use (4).
For knives 96" 2438 and over, use (5).
**Air Knife Plumbing Kit -** Full-Flow Air Knives that are 24" or longer must
be supplied with compressed air at multiple inlets on the knife. The Air Knife
Plumbing Kits prevent you from searching for the right fittings or using
undersized air supply lines. They provide properly sized compressed air hose
and fittings to interconnect the rear or end compressed air inlets for best
performance. Plumbing kits for Full-Flow Air Knives Inclusde a pressure gauge
to monitor pressure at the Full-Flow Air Knife, which is an indication of
proper air supply. They also Inclusde nitrile/PVC hose and brass fittings.
**Coupling Bracket Kits -** Some applications require a Full-Flow Air Knife
that is longer than our 36" 914 length. Coupling Bracket Kits that join
two Full-Flow Air Knives together are available. The kit Inclusdes two rigid
plates along with the assembly screws. All models Inclusde stainless steel
screws.
**Air Knife Shim Sets -** Compressed air exhausts through a gap in the Air
Knife which is set with a shim. Force and flow may be increased by adding
shims.
Shim sets for aluminum Full-Flow Air Knives Inclusde a .001" (0.03 ) Amber
color, .003" (0.08 ) Green color, and .004" (0.10 ) thick Tan color plastic
shim . A Red color .002" (0.05 ) thick shim comes installed in the Full-Flow
Air Knife. Shim sets for stainless steel Full-Flow Air Knives Inclusdes (1)
.002" (0.05 ) thick stainless steel shim.
Performances +
Full-Flow Air Knife Performance
---
Pressure Supply , Air Consumption per inch (25 ) , Velocity @ 6" 152 from
target , Sound Level @ 3' 914 , Force per Inch (25 ) @ 6" 152 from
target
PSIG , BAR , SCFM , SLPM , FPM , , A , OUNCES , GRAMS
20 , 1.4 , 1.1 , 31 , 3,000 , 15.2 , 64 , 0.4 , 11
40 , 2.8 , 1.8 , 51 , 5,000 , 25.4 , 72 , 1.0 , 28
60 , 4.1 , 2.4 , 68 , 7,500 , 38.1 , 76 , 1.6 , 45
80 , 5.5 , 3.1 , 88 , 10,000 , 50.8 , 80 , 2.3 , 65
100 , 6.9 , 3.8 , 108 , 12,000 , 61.0 , 83 , 2.9 , 82
12" 305 Full-Flow Air Knife tested with .002" (0.05 ) thick shim
installed.
---
Pressure Supply , Air Consumption per inch (25 ) , Velocity @ 6" 152 from
target , Sound Level @ 3' 914 , Force per Inch (25 ) @ 6" 152 from
target
PSIG , BAR , SCFM , SLPM , FPM , , A , OUNCES , GRAMS
20 , 1.4 , 1.1 , 31 , 3,000 , 15.2 , 64 , 0.4 , 11
40 , 2.8 , 1.8 , 51 , 5,000 , 25.4 , 72 , 1.0 , 28
60 , 4.1 , 2.4 , 68 , 7,500 , 38.1 , 76 , 1.6 , 45
80 , 5.5 , 3.1 , 88 , 10,000 , 50.8 , 80 , 2.3 , 65
100 , 6.9 , 3.8 , 108 , 12,000 , 61.0 , 83 , 2.9 , 82
12" 305 Full-Flow Air Knife tested with .002" (0.05 ) thick shim
installed.
- Matériaux
- Inox 303
- Longueur du flux (mm)
- 76 à 914
- Vitesse du flux d’air (à 152 mm et 5.5 bar)
- 50,8
- Force par 25 mm (à 152 mm et 5.5 bar)
- 65
- Niveau sonore à 5.5 bar (dB)
- 80
- Cale standard
- 0,05
- Emplacements Entrées d'air
- Arrière
- Dimensions
- 37x45
- Livrés en standard
- Bouchons d'entrée d'air
- Compléments
- Bras de montage universel, filtres décanteurs, régulateurs de pression, filtres déshuileurs, électrovannes, contrôleurs de débit électronique (EFC), jeux de cales
- Flux
- Effect coanda
- Flux sur longueur
- Oui
- Rapport d'amplification
- 30:1
- Filetage entrées d’air
- 1/4 FNPT/FBSP
