Reference : 110203SSDX
Price on request
Avantages +
Advantages
* Quiet - 69 dBA for most applications
* Minimal air consumption
* 40:1 air amplification
* Uniform airflow across entire length
* Variable force and flow
* No moving parts - maintenance free
* Easy mounting - compressed air inlets on each end and bottom
* Compact, rugged, easy to install
* Recessed hardware
* Stock lengths to 108" 2743 mm in aluminum, 303 stainless steel, and 316 stainless steel (ss - for temperatures up to 800°F (427°C), food processing or corrosive environments), and PVDF up to 54" 1372 mm for superior corrosion resistance.
* Special lengths available
* Unlimited system lengths of uninterrupted airflow available
Accessoires +
**Air Knife Plumbing Kits -** Super Air Knives that are 24" or longer must be
supplied with compressed air at multiple inlets on the knife. The Air Knife
Plumbing Kits prevent you from searching for the right fittings or using
undersized air supply lines. They provide properly sized compressed air hose
or pipe, and fittings to interconnect the bottom or end compressed air inlets
for best performance. Plumbing kits for aluminum Super Air Knives Inclusde a
pressure gauge to monitor pressure at the Super Air Knife, which is an
indication of proper air supply. They also Inclusde nitrile/PVC hose and brass
fittings. Plumbing kits for stainless steel Super Air Knives Inclusde cut to
length type 316 stainless steel pipe and fittings and will also work on PVDF
Super Air Knives.
**Coupling Bracket Kits -** Some applications require a Super Air Knife that
is longer than our 108" 2743 length. Coupling Bracket Kits that join two
Super Air Knives together are available. The kit Inclusdes two rigid plates
along with the assembly screws. The bottom plate is supplied with a hole to
access the bottom compressed air inlets. All models Inclusde stainless steel
screws.
Performances +
Super Air Knife Performance
---
Pressure Supply , Air Consumption per inch (25 ) , Velocity @ 6" 152 from
target , Sound Level @ 3' 914 , Force per Inch (25 ) @ 6" 152 from
target
PSIG , BAR , SCFM , SLPM , FPM , , A , OUNCES , GRAMS
20 , 1.4 , 1.1 , 31 , 5,000 , 25.4 , 57 , 0.6 , 17
40 , 2.8 , 1.7 , 48 , 7,000 , 35.6 , 61 , 1.1 , 31
60 , 4.1 , 2.3 , 65 , 9,600 , 48.8 , 65 , 1.8 , 51
80 , 5.5 , 2.9 , 82 , 11,800 , 59.9 , 69 , 2.5 , 71
100 , 6.9 , 3.5 , 99 , 13,500 , 68.5 , 72 , 3.2 , 91
12" 305 Super Air Knife tested with .002" (0.05 ) thick shim installed
- Matériaux
- Inox 303
- Longueur du flux (mm)
- 76 à 2 743
- Vitesse du flux d’air (à 152 mm et 5.5 bar)
- 55,9
- Force par 25 mm (à 152 mm et 5.5 bar)
- 71
- Niveau sonore à 5.5 bar (dB)
- 69
- Cale standard
- 0,05
- Emplacements Entrées d'air
- Extrémités et dessous
- Dimensions
- 37x45

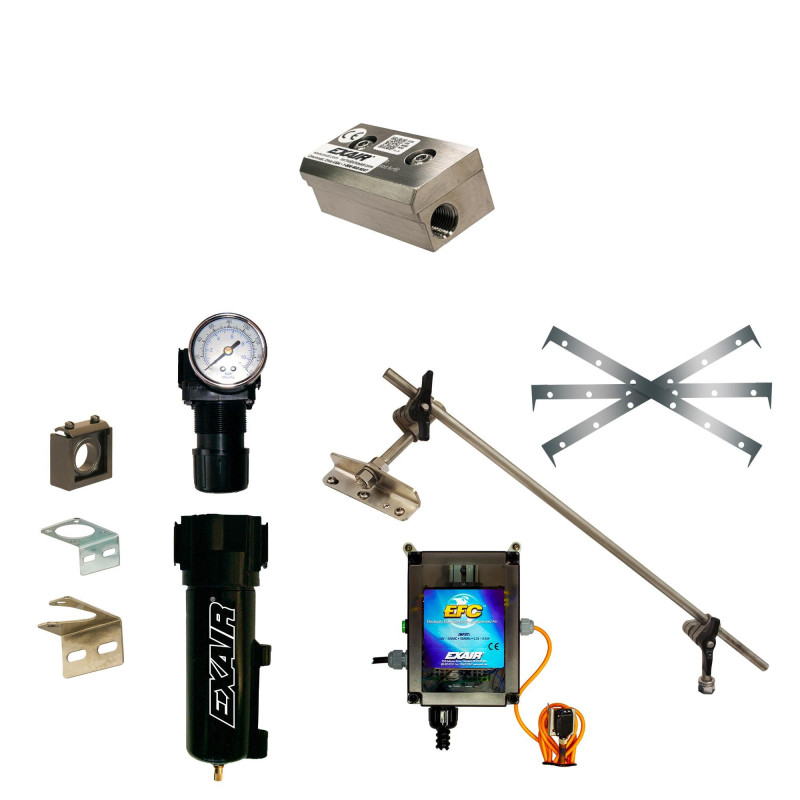

- Livrés en standard
- Bouchons d’entrées d’air
- Compléments
- Kit alimentation en air, bras de montage
- EFC Electronic Flow Control
- Inclus
- Air Knife Mounting System
- Inclus
- Flux
- Laminaire
- Flux sur longueur
- Oui
- Rapport d'amplification
- 40:1
- Filetage entrées d’air
- 1/4 FNPT/FBSP
How it works +
How the Super Air Knife Works
---
# Compressed air flows through an inlet (1) into the plenum chamber of the
Super Air Knife. The flow is directed to a precise, slotted orifice. As the
primary airflow exits the thin slotted nozzle (2), it follows a flat surface
that directs the airflow in a perfectly straight line. This creates a uniform
sheet of air across the entire length of the Super Air Knife. Velocity loss is
minimized and force is maximized as the room air (3) is entrained into the
primary airstream at a ratio of 40:1. The result is a well defined sheet of
laminar airflow with hard-hitting force and minimal wind shear.
